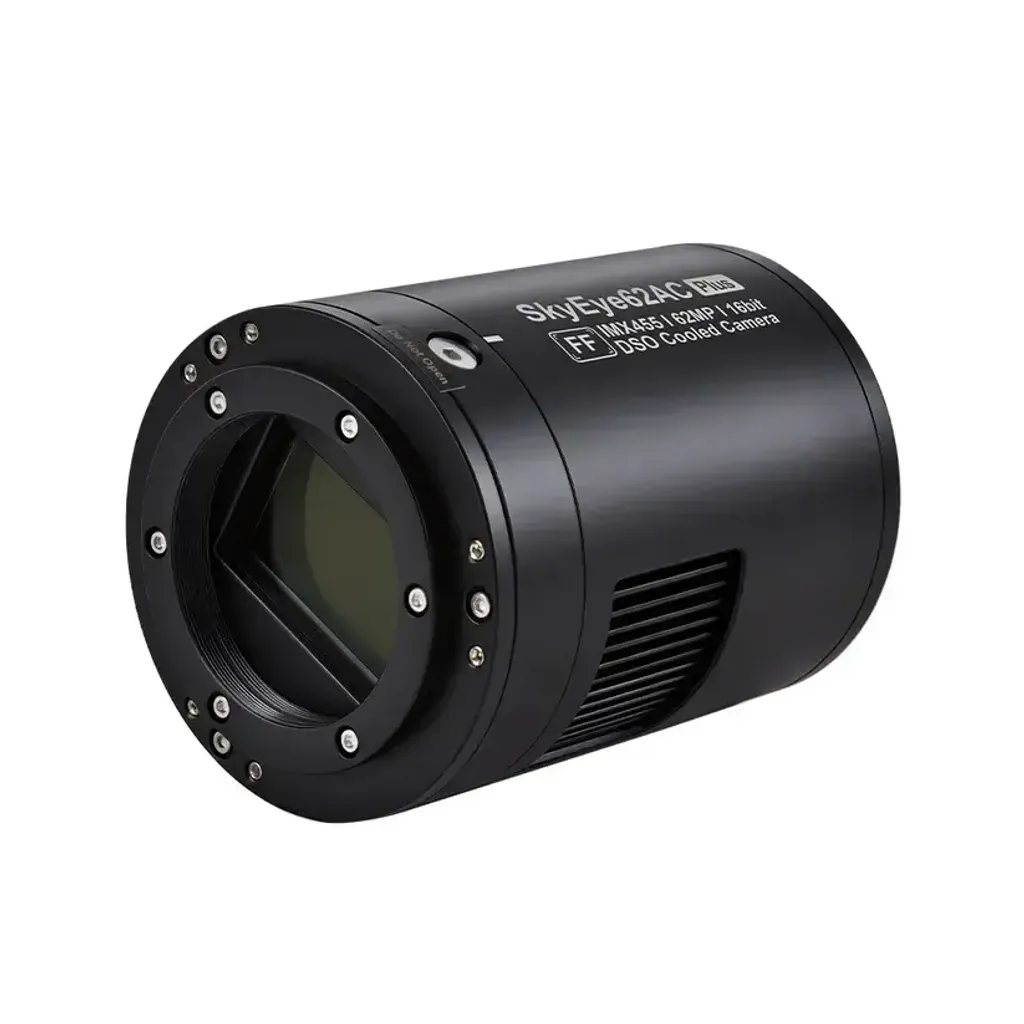

pro_SkyEye62AM1

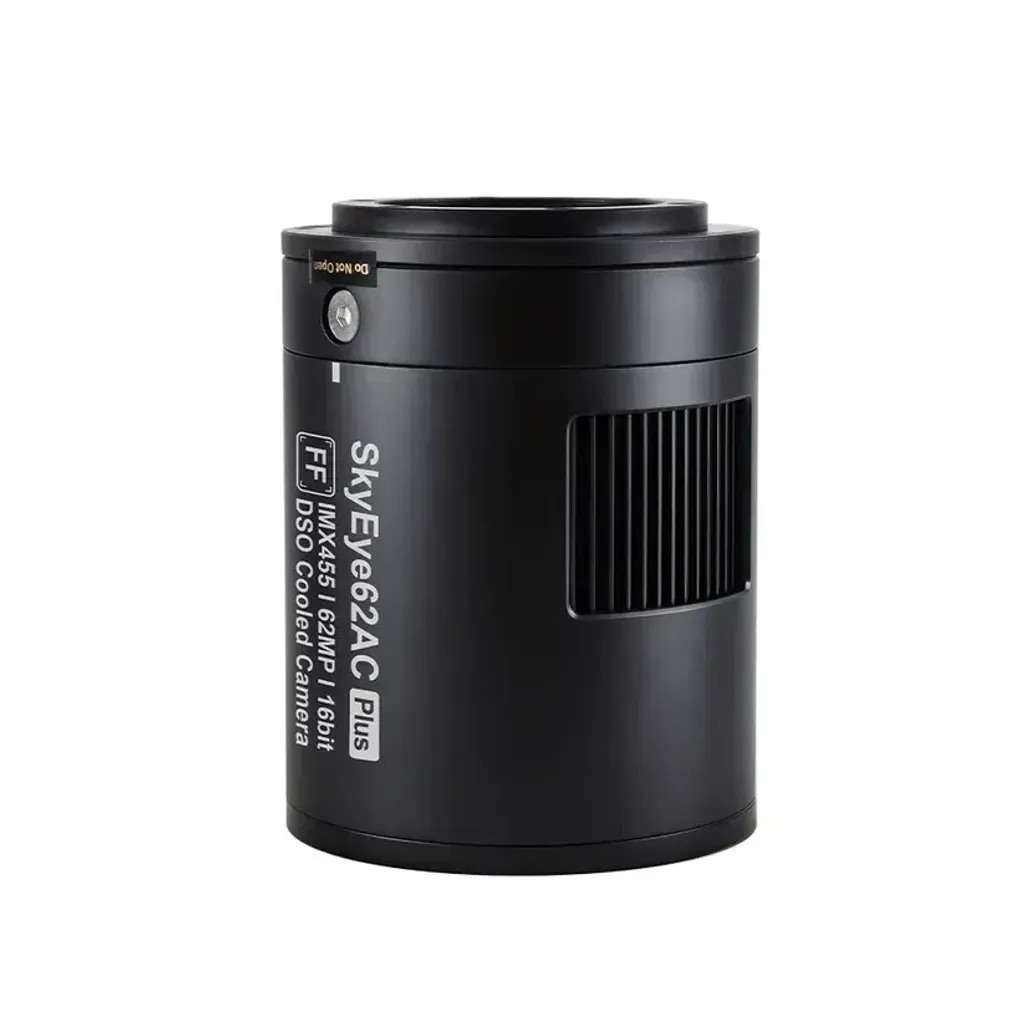

Touptek Skyeye 62AM Plus Astronomical Camera Bundle

RM 17,000.00
View More

images

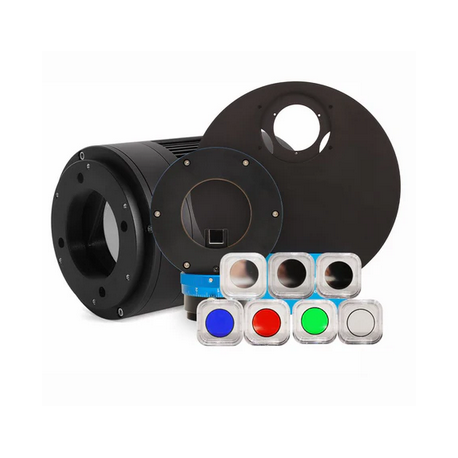

complete-touptek-astrophotography-bundle-533m-pro-camera-filters-oag

SkyEye62AC_Plus_head

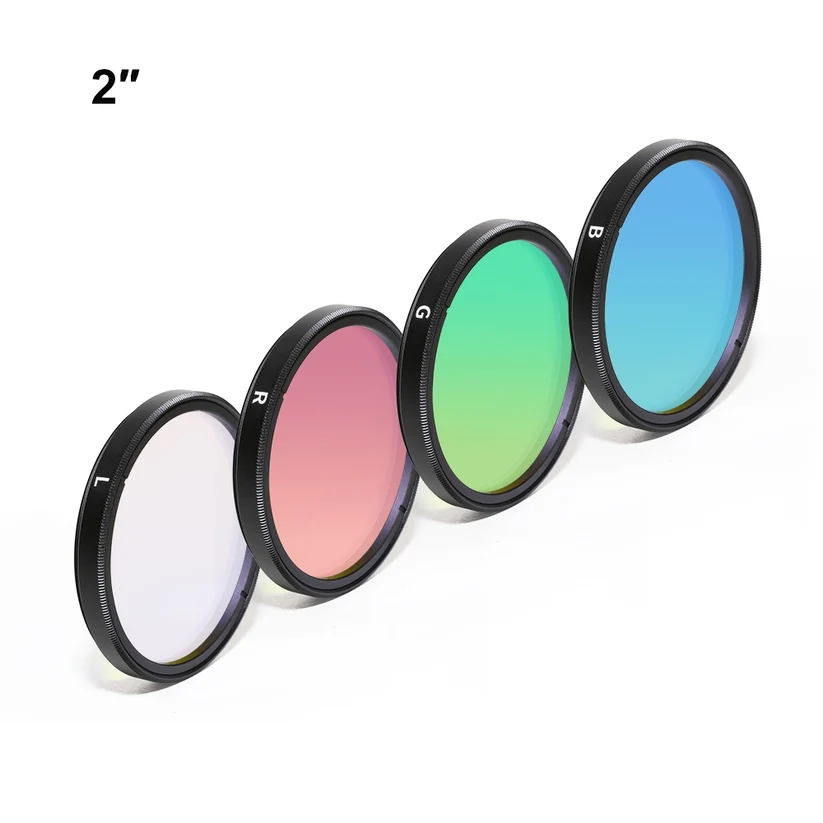

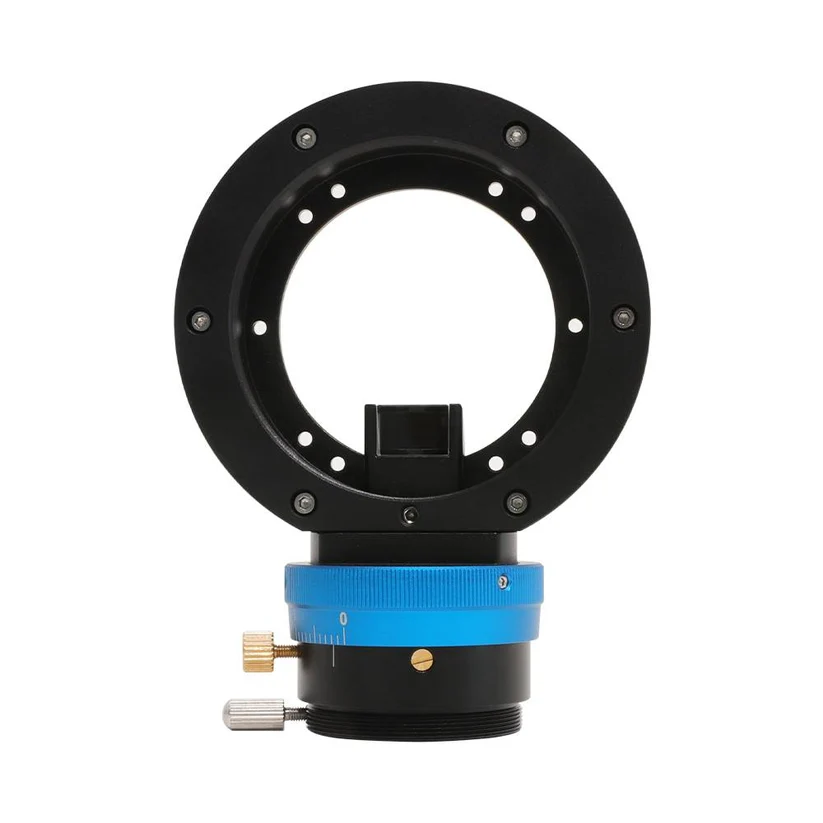

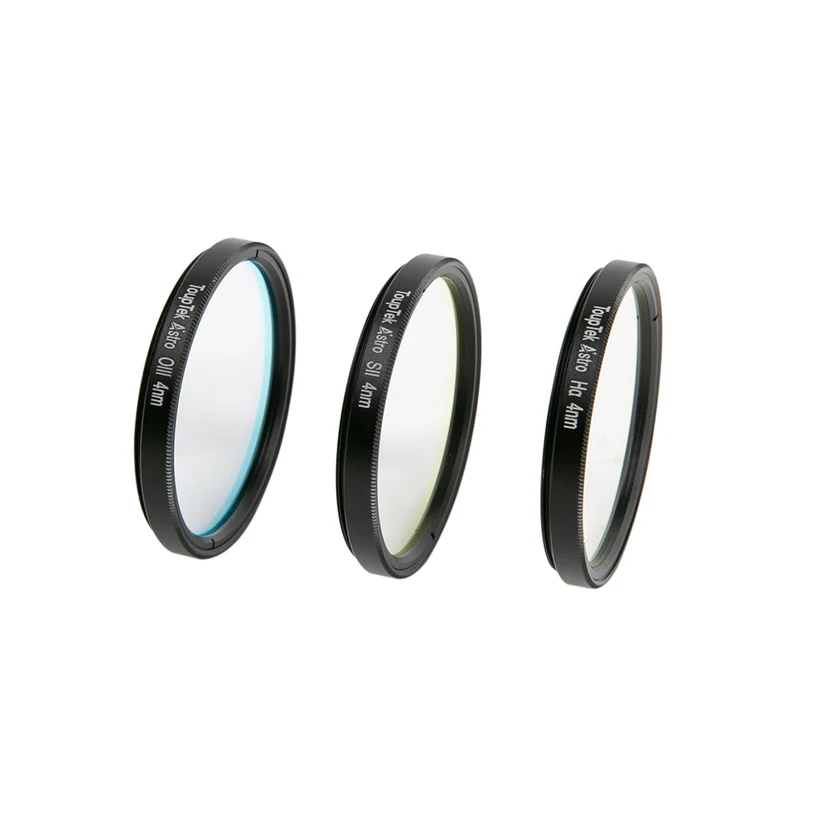

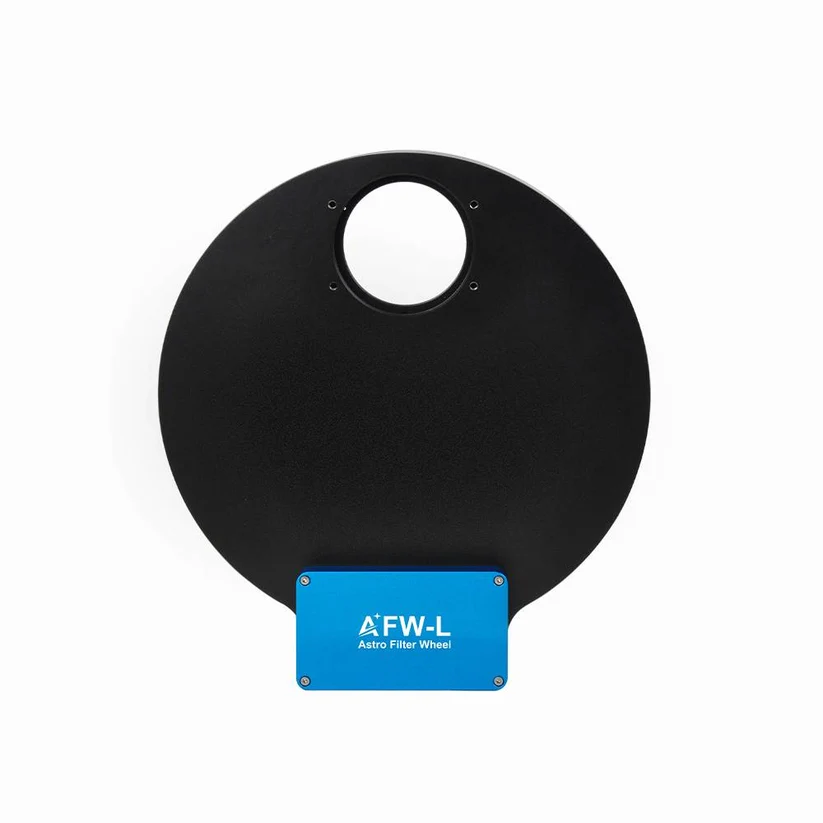

SkyEye 62AM Plus Bundle Includes AFW 7x2, Off Axis Guider-X HSO 4nm and LRGB Filter (2'' Size)

pro_OAG-X2

AFW-L_1HEADER_SHO_4nm_03LRGB_2_filter

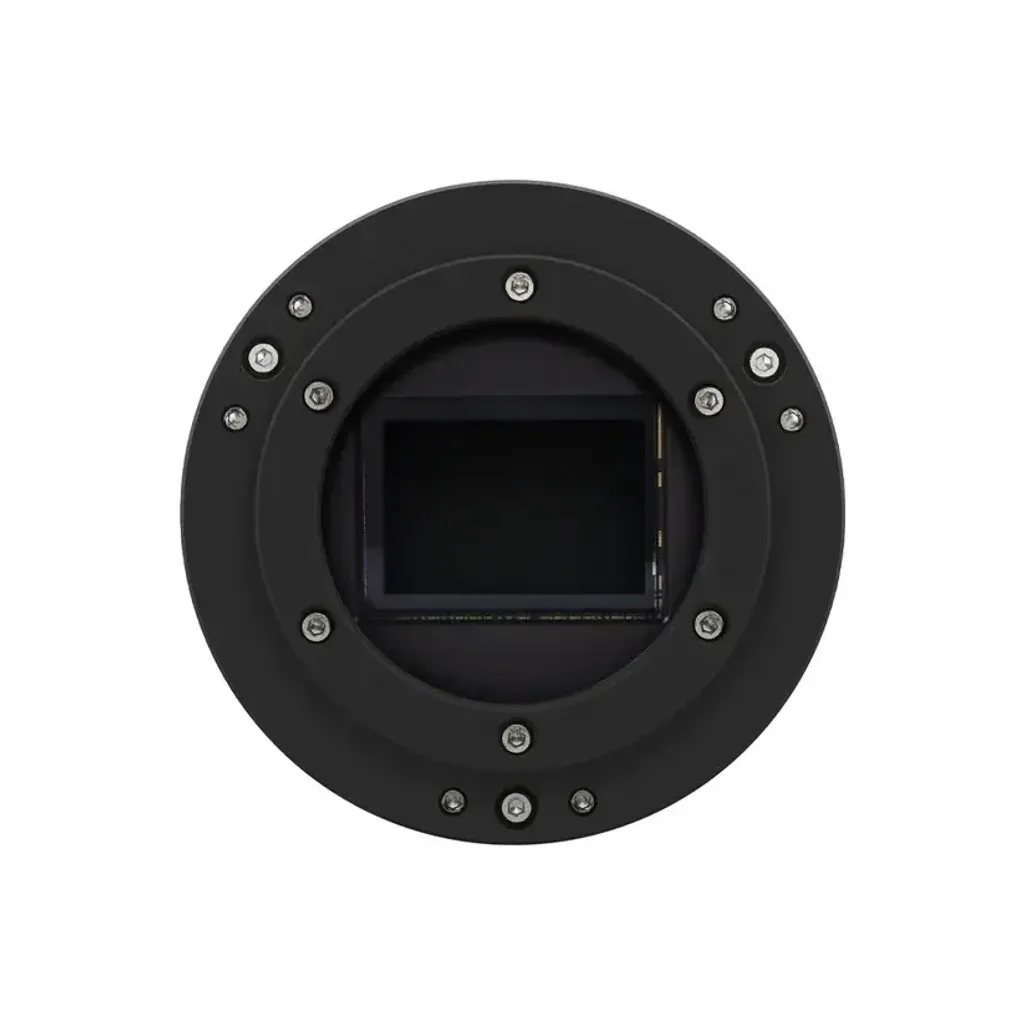

SkyEye62AC_Plus_SensorSkyeye 62AM/AC Features Full Frame Sensor


SkyEye24AC_Plus_Enlarged_Front_WindowLarger Sensor Window

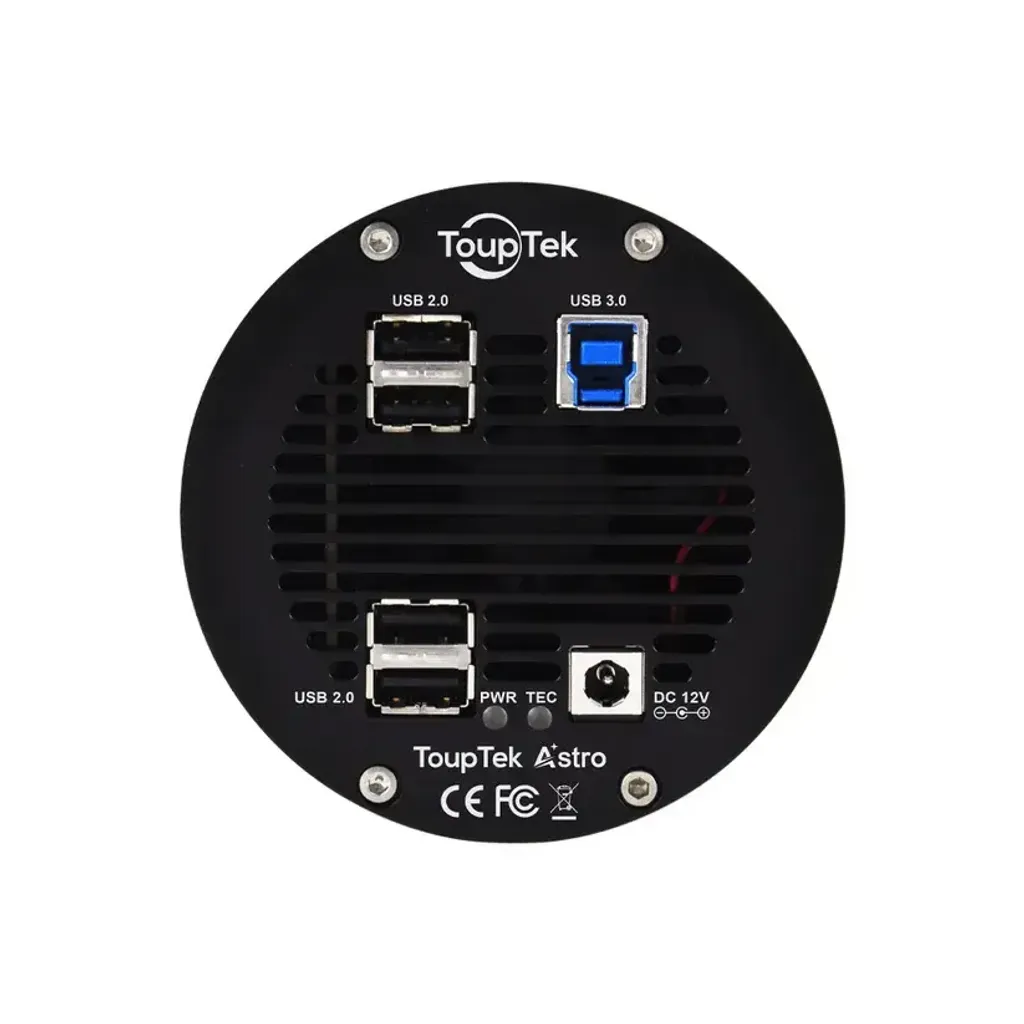

SkyEye24AC_Plus_44 USB 2.0 Port

SkyEye_Plus_Anti-Condensation_HeatingSmart Anti Dew Heater



Large 512MB DDR3 Memory Buffer Provides Higher Stability For Data Transfer

Built In Smart Anti Dew Heater With Sensor Provide Continuous Self Adjustment Based On External Temperature And Humidity

Supported On Native Driver And ASCOM Driver. Usable On Software Like NINA, APT, Sharpcap, Stellarmate, Firecapture Etc

Includes Carrying Case

Drivers And Software Available Here


Specifications

  • Sony IMX455 Full Frame Sensor Back-Illuminated
  • 24x36mm Sensor Size, 43.3mm Diagonal
  • 61MP Resolution 9568x6380 Pixel
  • 3.76µm Pixel Size
  • 512MB (4Gb) DDR3 Buffer
  • 16 Bit ADC
  • 16FPS At Max Resolution
  • 51K Full Well Capacity
  • Zero Amp Glow
  • AR Cut Window
  • > 80% Peak QE (Colour) 91% Peak EQ (Mono)
  • -35/40°C Dual Stage TEC Cooling
  • Built In Smart Anti Dew Heater
  • 12v 3A Power Requirement
  • 17.5mm Back Focus
  • M54 Interface
