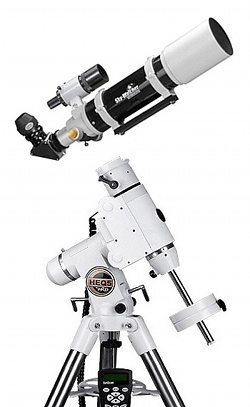

Skywatcher Evostar 80ED DS HEQ5 Pro Imaging Telescope Package

RM 6,950.00 RM 7,599.00

Skywatcher Evostar 80ED DS Imaging Package

Skywatcher Evostar 80ED DS Refractor Are Among The Best Advance Imaging APO Refractor. The 80mm ED APO Refractor Design Utilizing Japan Ohara FPL-53 Flourite Lens Matched With Schott AG Glass Provides Best Quality And Clarity. The View Is Chromatic Aberation Free. APO Refractor Allow High Sharpness & Clarity With Unmatched Resolution & Contrast. Planets Show More Than Just Colour Bands - Jupiter Will Show It's Complex Weather Band Pattern At Finer Details, Saturn's Ring Showing More Division, Mars Showing It's Polar Ice Caps & Surface Details.

This Optical Tube Is Suitable For Those Looking For A Premium Grade APO Refractor For Both Powerful Visual And Imaging Performance. Optional Corrector/Reducer Available To Enhance Imaging Performance

Combined With HEQ-5 Pro Mount, This Is Best Visual & Imaging Package . The HEQ-5 Pro Is Improved Version From Original Version.Native Periodic Error Of +/-7 Arc Seconds (Correctable To +/-2 Arc Seconds). Imaging Capacity Of 11Kg (25lbs) And Visual Capacity Of 16Kg (35lbs)





Skywatcher Evostar 80ED DS Telescope

  • 80mm ED Apochromatic Refractor Telescope
  • F/7.5 Focal Ratio
  • 600mm Focal Length
  • High Transmission Metalic (MHC®) Coating Super Multi-Coating
  • 1.45Arc Seconds Resolution
  • 186X Maximum Magnification
  • 131X Light Gathering Power
  • 2'' Dual Speed Focuser
  • Limiting Magnitude 12.0


Skywatcher HEQ-5 Pro Mount

  • Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation.
  • Payload Capacity : 16Kg (Visual) 11Kg (Imaging)
  • Stepper motors with 1.8° step angle and 64 micro steps driven.
  • Slewing speed up to 3.4°/sec (800X).
  • Auto Guider Interface for astro-photography.
  • Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
  • Object database containing complete Messier, NGC, and IC catalogues.
  • Minimal vibration for steady long-exposure photography.
  • Periodic Error Correction.
  • PC compatibility.
  • EQMOD Compatible
  • ASCOM Supported
  • Upgradeable hand control via internet download
  • Telescope Mounting Method: Tube Ring
  • Tripod: Stainless Steel Legs
  • Counterweight Shaft Diameter: 1.8cm
  • Counterweight Shaft Length: 21.5cm
  • Counterweight Shaft Material: Stainless Steel
  • Mount Weight (without counterweight): 10Kgs
  • Mount Height: 35cm
  • Total weight: 15kgs (without counterweights)
  • Motor Type: Microstep driven 1.8 degree stepper motors
  • Motor Resolution: 0.144 arc sec (or 9.024,000 steps/rev.)
  • Power Supply: 11 to 15 V DC 2Amp (Tip positive)
  • Gear Ratio: 705


Included Items

  • Skywatcher Evostar 80ED DS APO Refractor
  • Carrying Case
  • 2'' 99% Reflectivity Dieletric Diagonal
  • 8x50 Straight Thru Finder Scope
  • 28mm 2'' APEX Eyepiece
  • 2'' To 1.25'' Adapter
  • T-Adapter For DSLR (T-Ring Required)
  • Dust Caps
  • Clamp Ring With Vixen Dovetail Plate
  • Skywatcher HEQ5 Pro Go To Mount
  • 1.75'' Stainless Steel Tripod
  • 1x 5.1 Kg Counterweight
  • Skywatcher Synscan Remote Controller V5
  • User Manual
  • 2 Years Warranty
