Skywatcher EQ6-R Pro Mount

RM 7,500.00

EQ6-R 1.jpg


Sky-Watcher EQ6-R Pro Mount (Green Banding)

Sky-Watcher EQ6-R Pro Mount Is Newer Improved Version Of Original NEQ6. Now With USB Port! Powerhouse For Astrophotography. Now With More Advance Technology - Belt Driven System, PPEC Support, Hybrid Stepper Motor And Drive System Ensure Significantly Lower Periodic Error And Improves Tracking Accuracy

Sturdy 2'' Stainless Steel Tripod Gives Stability For Imaging. 25Kg (55lbs) Payload Capacity. Include New Improved Carrying Handle, Bigger Azimuth Bolt And New Latitude Bolt Design

Dual Saddle Support Both Losmandy And Vixen Dovetail Size. Wifi Compatible With Optional Wifi Adapter. Build In Handle For Easy To Carry

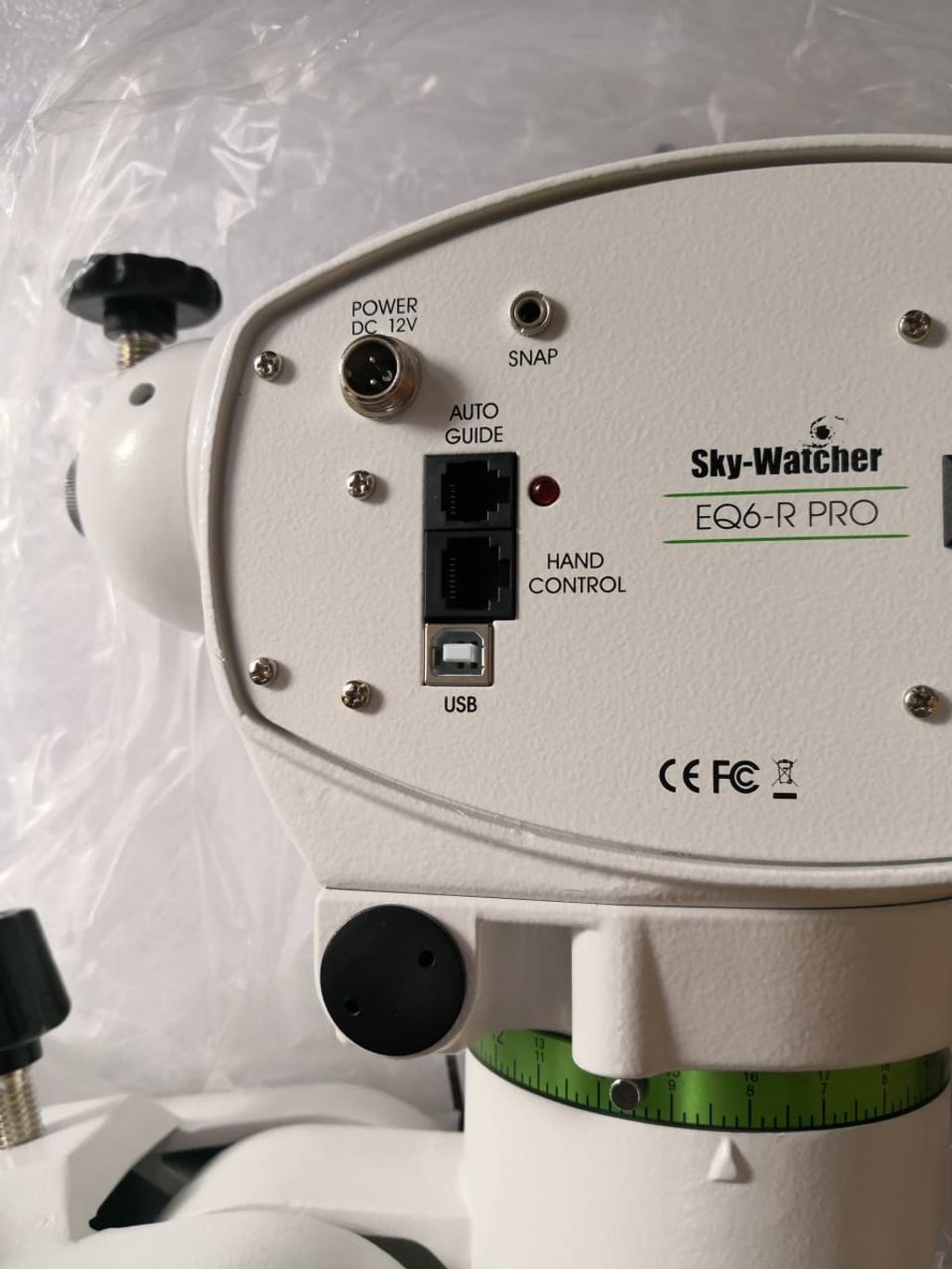

Support Polar Alignment With Controller Guided Drift Alignment. New Version Include Built In USB Port, New Improved Power Efficient Motor Drive Compared To Prevision Version

Product Specifications

Product Name
EQ6-R PRO Synscan™
Mount Type
German Equatorial
Maximum Payload (Counterweights excluded)
25Kg (55lbs)
Latitude Adjustment Range
5° to 65º
Azimuth Adjustment Range
About ±9 º
Mount Weight (Tripod excluded)
17.3 kg (38lbs)
Counterweights Supplied
2 x 5.1kg
Tripod Supplied
2-inch stainless steel, 7.5kg Weight
Counterweight Rod
18mm Diameter, Length 240mm + 180mm
Power Requirement
DC11~16V 4A
1.8 º Hybrid Stepper Motors
180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
Gear Ratio
9216000 Counts/Rev., approx. 0.14 arc-second
Maximum Slewing Speed
4.2 degrees/second
Tracking Rate
Sidereal rate, solar rate, lunar rate
Tracking Mode
Equatorial mode
Auto-guiding Speed
0.125X, 0.25X, 0.5X, 0.75X, 1X
100 Segments Permanent PEC (PPEC)
Hand Controller
42900+ Objects
Celestial Object Catalogue
Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
Pointing Accuracy
Up to 5 arc-minutes (RMS)
Camera Control
Integral SNAP camera control port
Dual-Fit 45mm/75mm Dovetail Saddle
Polar Alignment Scope

Included Item

•EQ6-R Mount

•2" Stainless Steel Tripod

•2x 5.1Kg Counterweight

•Synscan V5 Controller

•Controller Holder

•Accessories Tray

•Polar Scope With Illuminator

•Built In USB Port On Mount

•Cigar Port Power Adapter

•Canon EOS Snap Cable

User Manual

*Please Note That 0° Latitude Is Achieved With Wedge. Please let Us Know If Needed. Default Is 5°

Include Free Backlash Gear Adjustment And Continuous Tracking Test Prior Delivery. Covered By 3 Years Warranty As Quality Assurance Of Product
