Levenhuk M200 BASE Digital Microscope Camera
Levenhuk M200 BASE Digital Camera
Levenhuk M200 BASE digital camera is good for any microbiology fan. It will let them make an advanced digital microscope out of a usual biological one. This camera allows you to capture microscope samples, and record videos in six modes that differ by the frame rates and image resolution. Photos and videos with a resolution of up to 1600x1200 pixels are suitable for creating archives of observations or for posting them on the internet. With Levenhuk M200 BASE, you can share the most vivid impressions of observations with your friends and like-minded people. The camera is installed in place of a standard eyepiece and is connected to the computer via USB cable. You can start using the camera right after installing the special software on your computer (included in the kit). This model is compatible with 23.2mm eyepiece tubes, and can be used with microscopes of other diameters by using an adapter (not included).
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac OS, Linux*, Windows Vista, and Windows 7/8/10. A USB 2.0 port is required to establish a connection.
The latest version of Levenhuk Software for Windows (release date: 11/20/2013) supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of other diameters using adapters (not included in the kit).
|Exposure time, ms||auto|
|Sensitivity, v / lux.sec @ 550 nm||[email protected]|
|Application||eyepiece tube of 23.2mm diameter, instead of the actual eyepiece|
|Image format||*.jpg, *.bmp, *.png, *.tif|
|Video format||recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)|
|Spectral range||380–650 (built-in infrared filter)|
|Method of exposure||ERS (Electronic Rolling Shutter)|
|Software features||image size, brightness, exposure time|
|USB features||USB 2.0, 480 Mb/sec.|
|System requirements||Mac OS 10.12, Linux Ubuntu 14.04, Windows Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.|
|Power supply||via USB 2.0 cable|
|Operating temperature range, °C, °F||-10... 50°C; 14… 122°F|

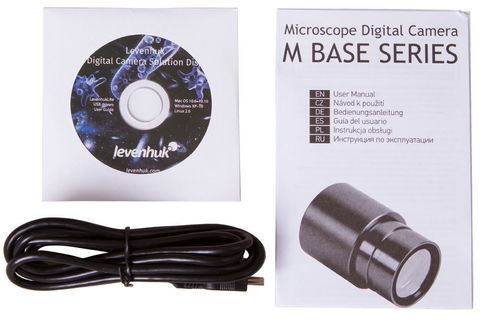

- Levenhuk microscope digital camera
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
