ZWO ASI 462 MC Camera

RM 1,160.00

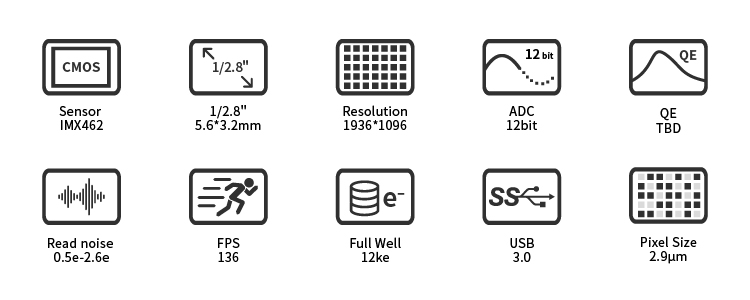

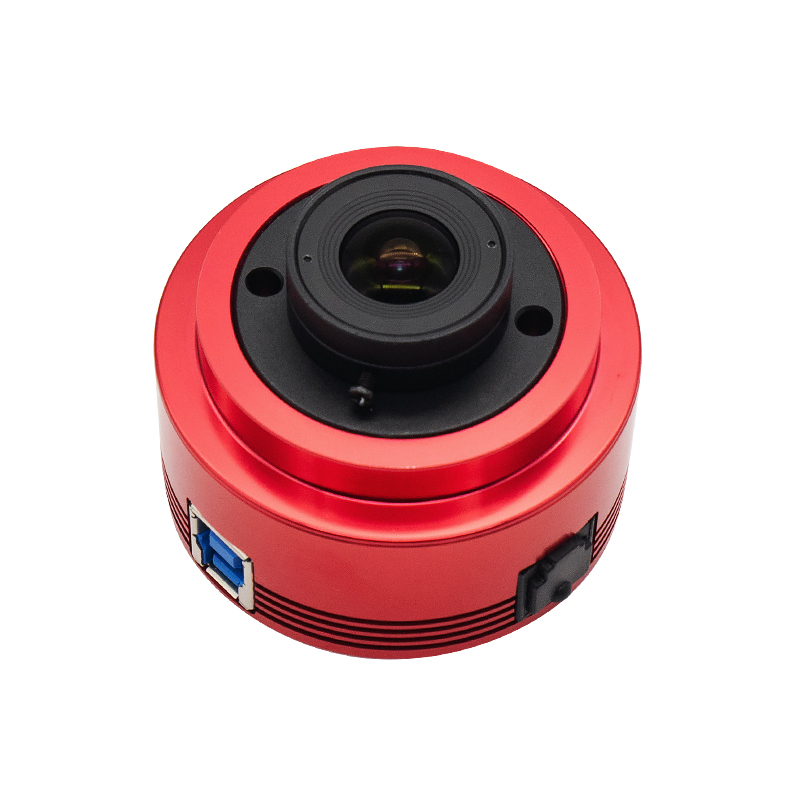

ZWO ASI 462MC Astronomy Camera

With the ability to capture light in the near-infrared portion of the spectrum, and the super high sensitivity combined with ultra-low readout noise, this camera is considered as the highly improved version of ASI290MC. It will offer great performance for planetary, solar and lunar imaging. Some highlights include:

  • Sony IMX462 1/2.8” format 12bit ADC
  • 9um pixel size
  • Well depth of 2ke-
  • Total of 1 megapixel accommodating a resolution of 1936*1096
  • Ultra-low read noise of 0.5e- to 2.6e-
  • 90% QE at 850nm.



IMX462 sensor

The format of the IMX462 sensor is 1/2.8”. The sensor length and width are 5.6mm*3.2mm and the diagonal is 6.46mm. The resolution is 1936*1096.
ASI462MC sensor

HCG mode

The cameras has a built-in HCG mode which can effectively reduce the readout noise at high gain and keep the same wide dynamic range as you would expect at low gain. When the gain is 80, the HCG mode will automatically turn on. This results in the read noise being as low as 0.47e- while the dynamic range still can reach close to 12 stops.

462_FW_EG_DR_RN_new

QE curve

ASI462 has very high QE value at 800-1000nm wavelength (almost 2 times higher than that of ASI290MC). The sensitivity in near-infrared light region ranks first among all ASI planetary cameras.

ASI462 QE curve

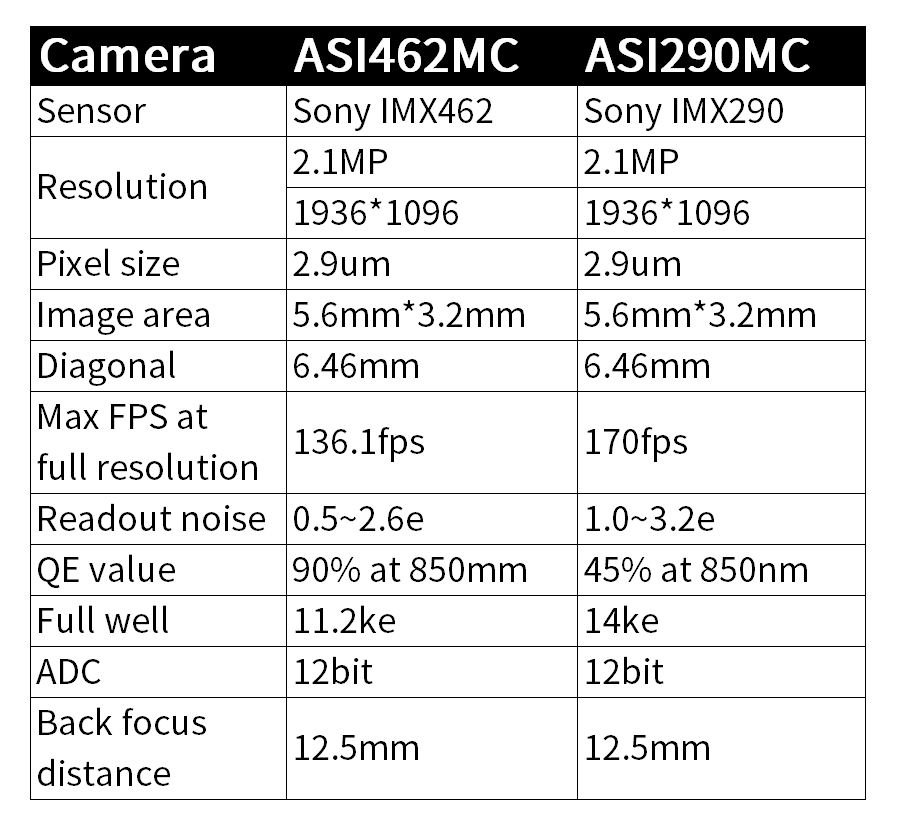

ASI462MC vs ASI290MC

In general, ASI462MC and ASI290MC share very similar characteristics but ASI462MC has some benefits in its favor in terms of lower readout noise and higher QE value.

ASI462MC vs ASI290MC

USB 3.0 Port & ST4 Port

USB 3.0 Port: Providing 5Gb bandwidth to let ASI462 run at 136.1fps (10bit, high speed mode) or 63.9fps (12bit, normal mode) at full resolution(2.1Mega).

ST4 Port: Can be used to connect with auto guide port of mount for guiding.



Mechanical Diagram

asi462MC-Mechanical-Drawing

What is in the box?

224-290-178-185-385 package list



Free Shipping To Singapore And Indonesia
