Levenhuk M300 BASE Digital Microscope Camera
Levenhuk M300 BASE Digital Camera

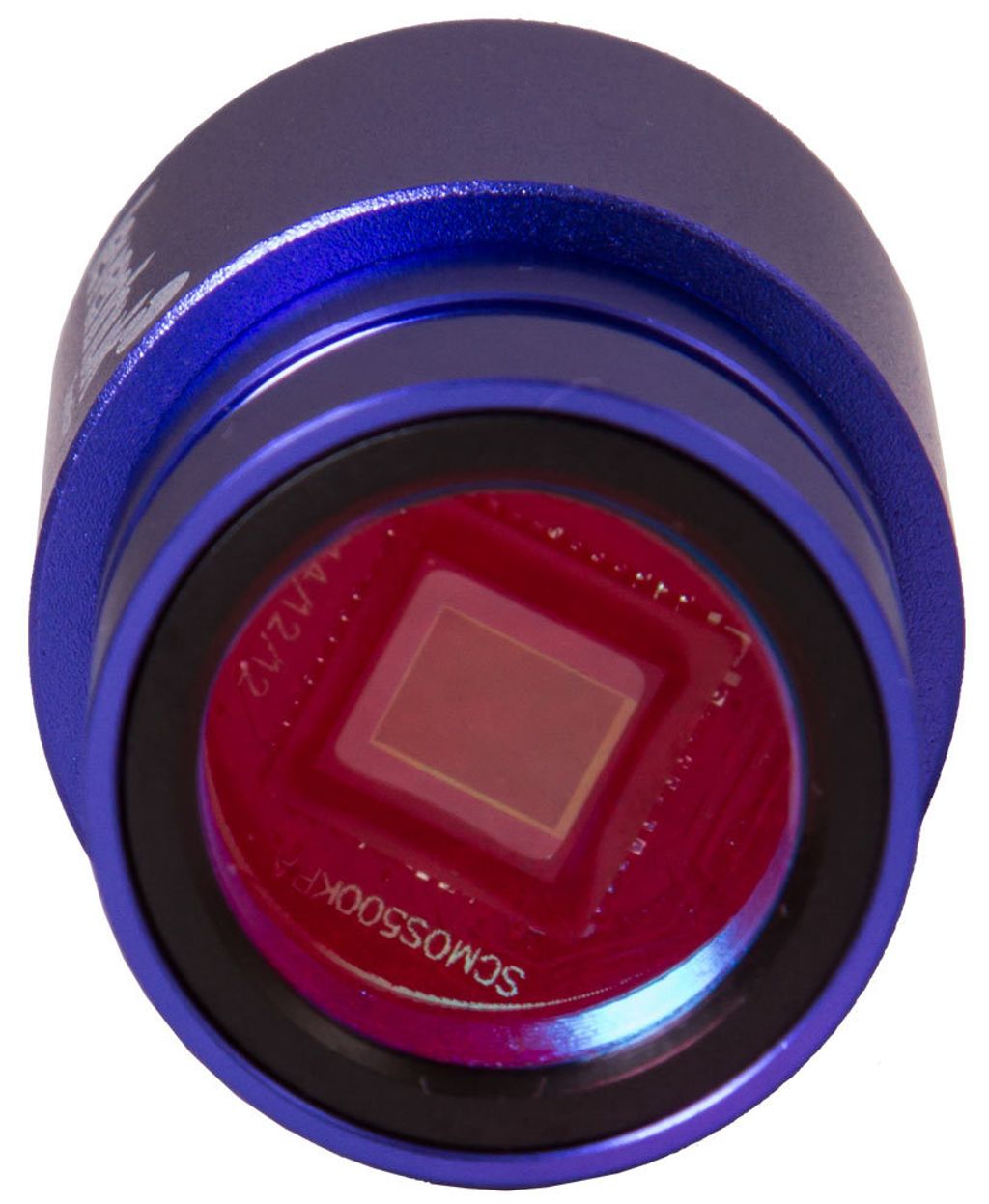

Levenhuk M300 BASE is a modern digital camera for microscopes that gives you an opportunity to take pictures of the specimen you study, record videos and transmit an image to your PC monitor right away. Using the camera and the special software (included), you can scrutinize observed specimens in all details on you PC or laptop, record interesting moments of the research, and edit photos and videos you have made.
Levenhuk M300 BASE can be used with any biological or stereoscopic microscope that is equipped with an eyepiece tube of 23.2mm diameter. If you have a microscope of a different diameter, use a special adapter (sold separately) to install the camera. To get started with the camera, connect it to your computer using the USB cable and install the software included in the kit.
The Levenhuk M300 BASE Digital Camera is an easy way to make an up-to-date digital microscope out of a simple optical instrument. The camera will become a useful accessory for study and work, or for a science hobby.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac OS, Linux*, Windows Vista, and Windows 7/8/10. A USB 2.0 port is required to establish a connection.
The latest version of Levenhuk Software for Windows (release date: 11/20/2013) supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of other diameters using adapters (not included in the kit).
|Exposure time, ms||auto|
|Sensitivity, v / lux.sec @ 550 nm||[email protected]|
|Application||eyepiece tube of 23.2mm diameter, instead of the actual eyepiece|
|Image format||*.jpg, *.bmp, *.png, *.tif|
|Video format||recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)|
|Spectral range||380–650 (built-in infrared filter)|
|Method of exposure||ERS (Electronic Rolling Shutter)|
|Software features||image size, brightness, exposure time|
|USB features||USB 2.0, 480 Mb/sec.|
|System requirements||Mac OS 10.12, Linux Ubuntu 14.04, Windows Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.|
|Power supply||via USB 2.0 cable|
|Operating temperature range, °C, °F||-10... 50°C; 14… 122°F|

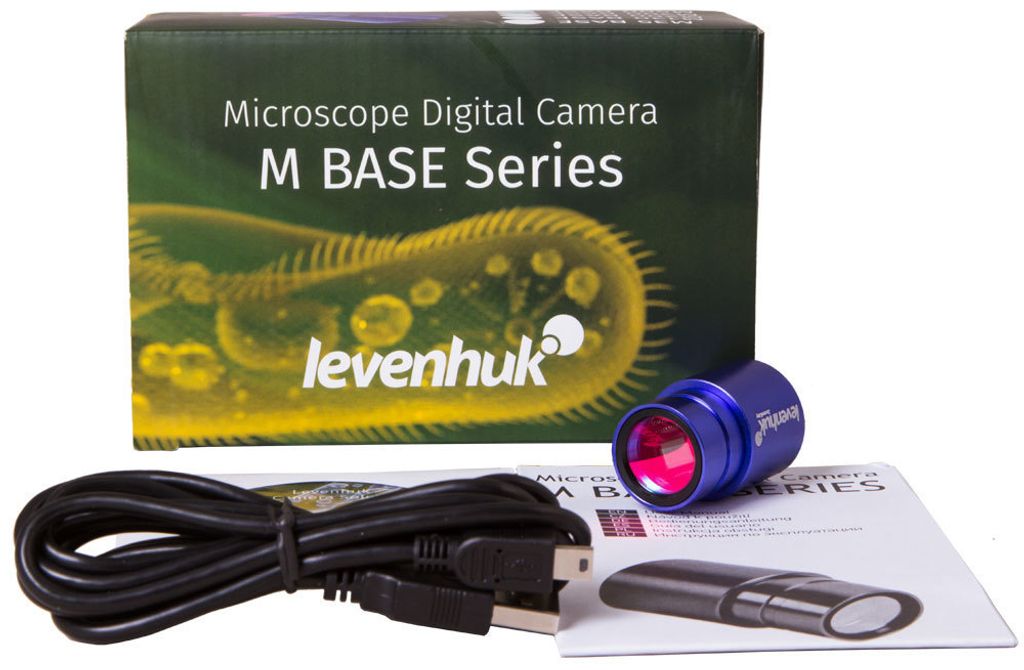

- Levenhuk microscope digital camera
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
